Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding

Name: Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Brand: COSMATI
Price: 4 USD

Quality Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding for sale

range of spindle speed(r.p.m) : 0 - 100 r.p.m

Product Type : Cosmetic

video outgoing-inspection : Provided

Roller diameter : 50mm

Place of Origin : Guangdong, China

application : Chemicals Processing, Plastics Processing, Food Processing

weight (kg) : 23

machinery test report : Provided

key selling points : Multifunctional

Voltage : 220V/50Hz

feeding size (mm) : 0.005 - 0.01 mm(0-0in)

core components : Bearing, Pump, Gear, Engine, Other

Roller length : 160mm

Price : $4,200-5,500

output size (mesh) : 100 - 3000 mesh

Speed : 0-100rpm

Brand Name : COSMATI

Capacity : 0.02-5L/H

material : SUS304, SUS316L, Ti, Other, ceramic

warranty : 1 Year

Supply Ability : 10000 set

power (kw) : 0.12

Other name : granding machine

Packaging Details : wooden cases

Payment Terms : TT

MOQ : 1

type : Grinder

dimension(l*w*h) : L390 x W210 x H280 mm

Keyword : three roll mill

output (kg/h) : 0.02 - 5 kg/h(0.04-11.02lb/h)

Product name : laboratory ceramic three-roll grinder three roll mill

voltage : 220V

Machine Type : Grinder Mill

Color : white

Delivery Time : 7 work days

Contact Now

Laboratory Ceramic Three-roll Grinder Three Roll Mill for Soap Lipstick Cosmetic Powder Triple Roll Mill

Introduction

The three-roll mill is suitable for the manufacture of slurries such as paints, inks, pigments, and plastics.Three rollers are installed on the iron frame of the three-roll mill, and the center is in a straight line. It can be installed horizontally or slightly inclined. The surface of the three horizontal rollers are pressed against each other, and then ground at different friction speeds. The steel drum can be hollow and cooled by water, and materials can be added between the middle roll and the rear roll.

Features

1. High-precision grinding (minimum precision can reach below 1um, depending on the inherent properties of the material)
2. Visual electronic touch screen control;
3. Self-adaptive fit the scraper seat;
4. Comes with roller cooling circulation system;
5. Precisely polished and easy-to-clean rollers;
6. Dual mode operation;
7. Equipped with dust cover, optional feeding hopper;

Capacity	Power&voltage	Roller speed ratio	Roller material
0.02-5L/Hour	0.12kw;220v/50Hz	1:2:4	Zirconia
Speed	Roller diameter/length	Scraper material	Dimension
0-100rpm	50mm/160mm	Stainless steel	L390W210H280mm

Company Profile

We have 2 factories, one was built in Jiangsu province, and mainly produce mixing tanks, vacuum emulsifier, and storage tanks, with 30 acres of space and with a pressure tank certificate. Another was built in Guangzhou city, mainly produce

Cream&Lotion&Liquid Detergent production line, filling packing lines, is with 5,000 square meters. We supply one-stop station service for designing workshops, workshop layout, selecting machines, and installation(one-stop solution).

Guangzhou Cosmati Technology Co.,Ltd is a scientific enterprise, concentrating on researching, developing, producing, and marketing services. Cosmati has a scientific research team made up of superior engineer and German export. Depending on Germany Cosmati technical tip and exquisite artwork, Cosmati has become the preferred automatic machinery manufacturer in cosmetic skincare, food and chemical industries.

We provide a fair price with competitive products. Excellent, Professional, Competitive products and good service are provided. The dedicated QC team is responsible for quality control from start production to delivery to the customers' side. Every product is carefully verified before delivery to the customer, as well as a detailed inspection record to provide accurate after-sales service.

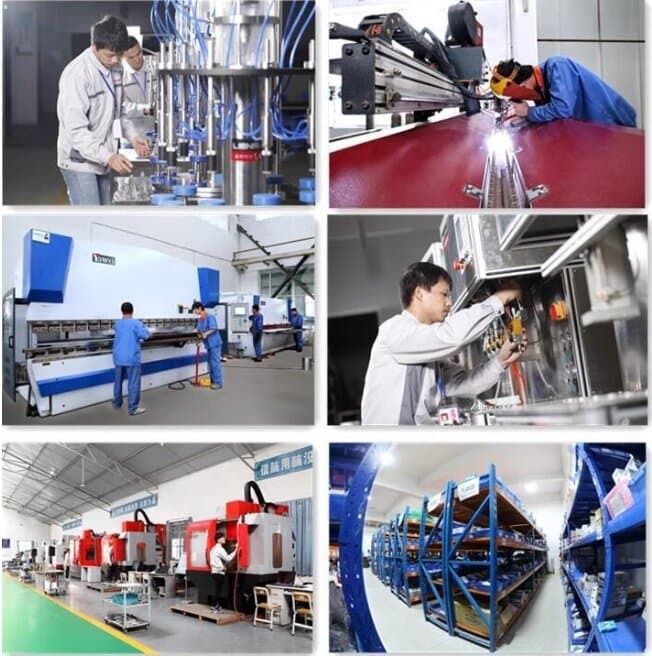

Factory profile

Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding

Engineer case

Trade show participation

Packaging & shipping specifications

Application

FAQ

Q1: What materials can this laboratory three roll mill process?

A:This laboratory three roll mill is designed for grinding and dispersing high viscosity materials, such as cosmetics, lipstick, cream, ink, pigment, coating, battery paste, graphene materials and pharmaceutical products.

Q2: What is the advantage of ceramic rollers?

A:The ceramic rollers provide excellent wear resistance, corrosion resistance and smooth surface performance, helping achieve fine particle size and uniform dispersion during grinding.

Q3: What is the processing capacity of this machine?

A:The laboratory three roll mill has a processing capacity of approximately 0.02-5L/H, which is suitable for laboratory testing, formula development and small batch production.

Q4: Is this machine suitable for cosmetic product development?

A:Yes. This machine is widely used for cosmetic R&D, including lipstick, foundation, cream, pigment paste and other high viscosity cosmetic materials that require fine grinding and uniform mixing.

Q5: How do I adjust the grinding fineness?

A:The roller gap can be adjusted according to different material requirements. By controlling the gap between rollers, users can achieve different grinding and dispersion effects.
